Sour Service Slug Catcher With isolated Sludge Manifold For Clean-out

At high pressure and in sour service, ZHM’s unique extrusion process allowed the use of high strength low alloy carbon steel fabrication, saving time and money. This Slug Catcher also included an isolated sludge manifold to aid in clean-out.

Design: (2) 6 – finger Slug Catchers

Gas Flow Rate: 740 MMSCFD (million standard cubic feet per day equal to 20.95 million m³/day), indicating high throughput.

Storage Capacity: 14,500 barrels (likely total 2,305 cubic meters (m³)), accommodating liquid slugs and ensuring stable downstream processing.

Design Pressure: 2,103 psig or 14.5 MPa (megapascals), necessitating robust materials and construction.

Specials: Sour Service

Line Pipe: 42” API 5L Line Pipe

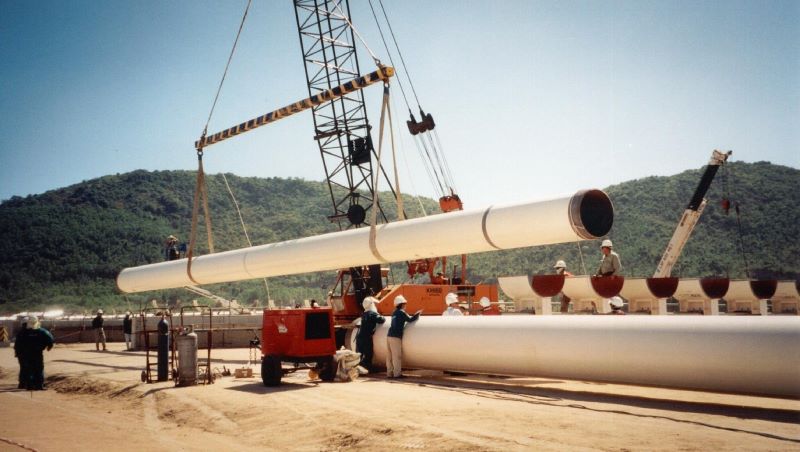

vietnam slug catcher composite pipe lifting site 02

The Slug Catcher project in Vietnam is a sophisticated engineering solution tailored for high-pressure, sour service conditions, integrating advanced materials and design efficiencies. Here's a structured breakdown:

Key Components & Specifications

Design Configuration:

Two 6-Finger Units: Each "finger" acts as a separation vessel, enhancing liquid-gas separation efficiency. The dual units provide redundancy and capacity to handle fluctuating flow rates, ensuring continuous operation.

Liquid gas separation with redundancy HSLA Carbon Steel H2S induced Cracking 03

Liquid gas separation with redundancy HSLA Carbon Steel H2S induced Cracking 03

Operational Parameters:

Gas Flow Rate: 740 MMSCFD (million standard cubic feet per day equal to 20.95 million m³/day), indicating high throughput.

Storage Capacity: 14,500 barrels (likely total 2,305 cubic meters (m³)), accommodating liquid slugs and ensuring stable downstream processing.

Design Pressure: 2,103 psig or 14.5 MPa (megapascals), necessitating robust materials and construction.

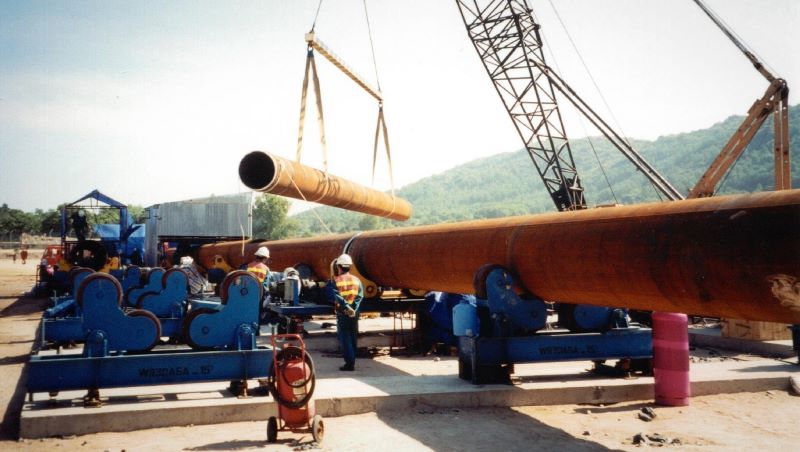

vietnam slug catcher sulfide stress cracking SSC NACE MR 0175 H2S Resistance 04

vietnam slug catcher sulfide stress cracking SSC NACE MR 0175 H2S Resistance 04

Material Innovation:

HSLA Carbon Steel: High-strength low-alloy steel offers strength-to-weight advantages, reducing material costs and fabrication complexity. Typically challenging in sour service due to H2S-induced cracking, but mitigated here by:

Unique Extrusion Process: Enhances microstructural integrity, improving resistance to sulfide stress cracking (SSC). This allows substitution of costlier alloys (e.g., stainless steel) with HSLA, aligning with NACE MR0175 standards for sour environments.

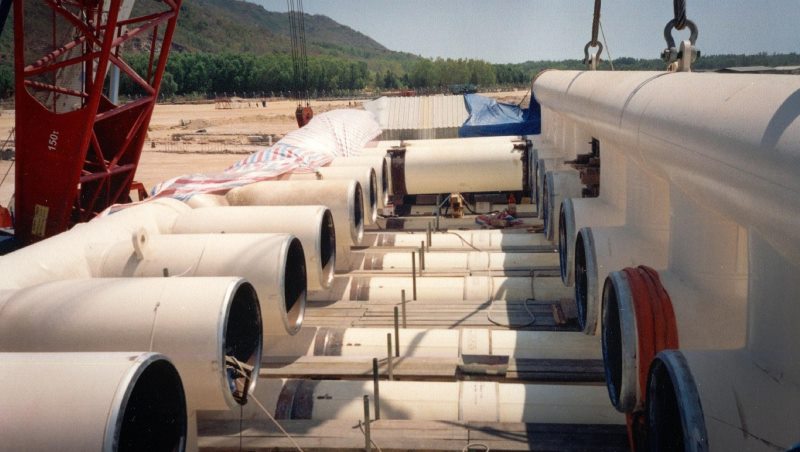

vietnam slug catcher Isolated sludge manifold sludge removal in high flow systems 05

vietnam slug catcher Isolated sludge manifold sludge removal in high flow systems 05

Sour Service Considerations:

H2S Resistance: The extrusion process ensures uniform grain structure and surface quality, critical for preventing SSC. Welding and fabrication protocols likely adhere to strict NACE guidelines to maintain integrity.

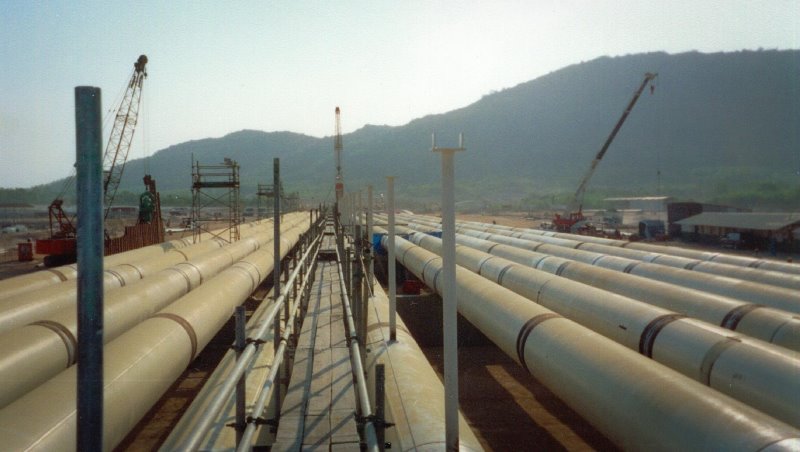

vietnam slug catcher sour media medium service challenges extrusion process 06

vietnam slug catcher sour media medium service challenges extrusion process 06

Special Features:

Isolated Sludge Manifold: Facilitates sludge (solids, sand) removal without system shutdown, minimizing downtime and maintenance costs. Critical for operational efficiency in high-flow systems.

Logistical & Environmental Context:

Location: Vietnam’s humid, potentially corrosive coastal environment necessitates additional anti-corrosion measures, though the design focuses primarily on sour service challenges.

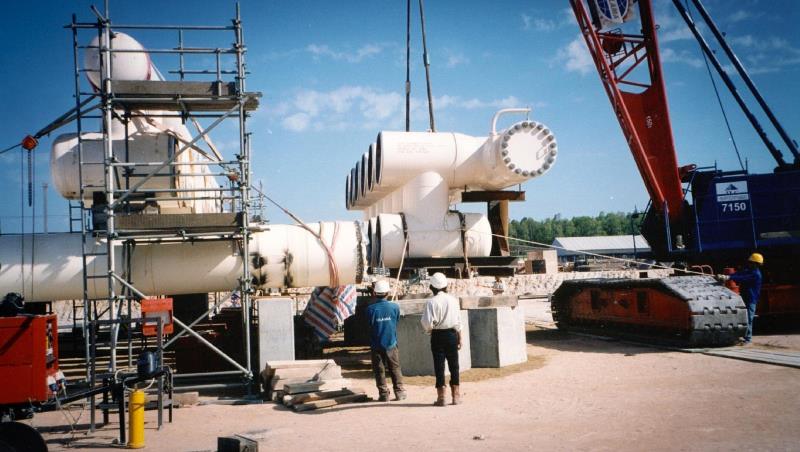

Finger slug catcher 2002 large diameter 42inch isolated sludge system 07

Finger slug catcher 2002 large diameter 42inch isolated sludge system 07

Technical Advantages

Cost Efficiency: Use of HSLA steel via extrusion reduces material expenses while meeting performance criteria.

Manufacturing Precision: The extrusion process enables fabrication of large-diameter (42") API 5L pipes with consistent quality, crucial for high-pressure applications.

Maintenance Optimization: Isolated sludge system enhances operational uptime, aligning with project goals of time and cost savings.

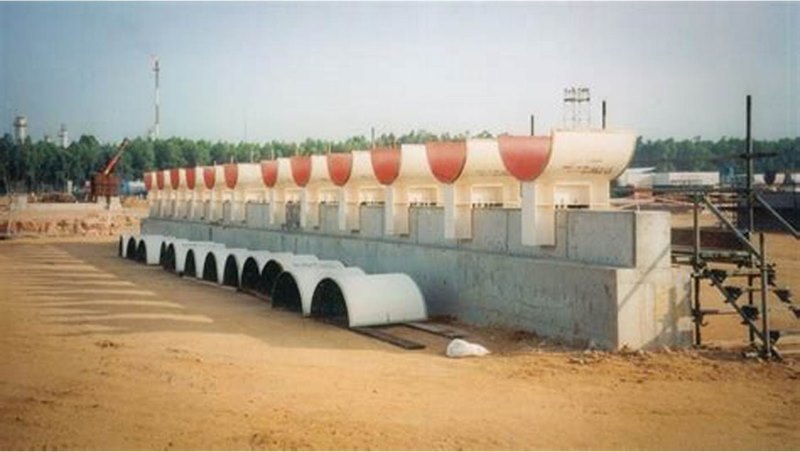

finger type slug catcher saddle support site installation 08

finger type slug catcher saddle support site installation 08

Conclusion

This project exemplifies innovation in material science and process engineering, enabling cost-effective, reliable solutions for harsh operational environments. The integration of advanced manufacturing (extrusion) with thoughtful design (modular fingers, sludge management) underscores a balance between performance, safety, and economic efficiency.

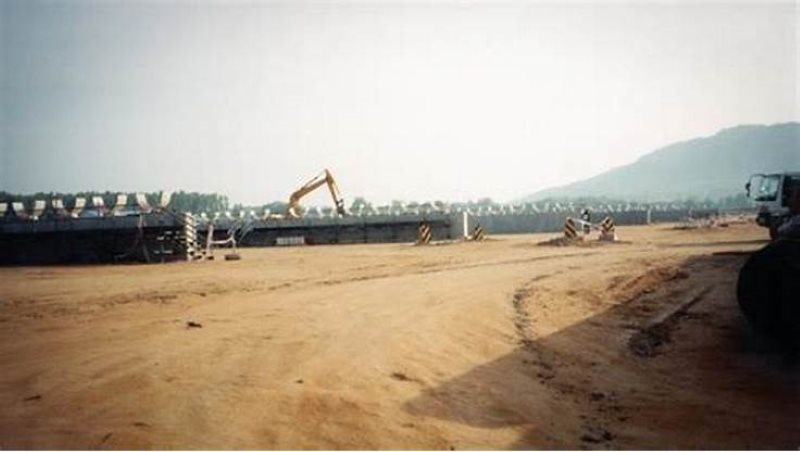

Modular fingers sludge management bracket support saddle construction 09

Modular fingers sludge management bracket support saddle construction 09

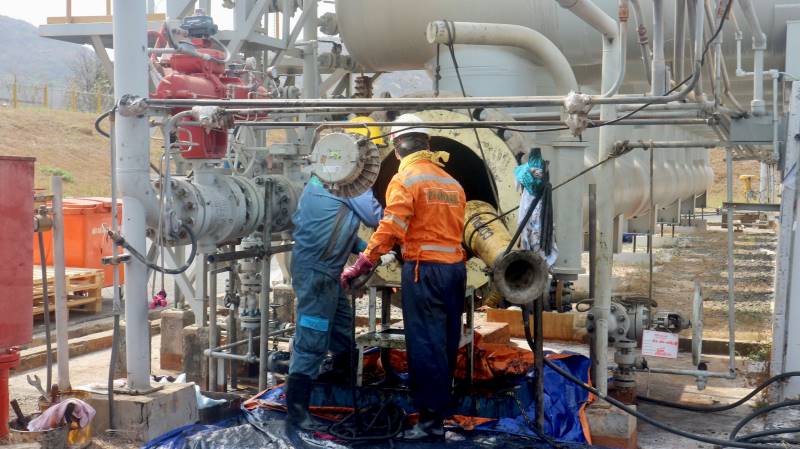

Slug Catcher used for Pig launcher receiver drain 10
